5.3. The "Set Profiling Attributes" dialog box

This dialog box is displayed by menu item XML menu → Conditional Processing → Set Profiling Attributes.

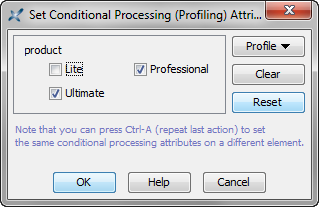

Figure 8. The "Set Profiling Attributes" dialog box
The "Set Profiling Attributes" dialog box

This dialog box is available only when a profile set (that is, a ".profiles" file) has been associated to the document being edited. It displays all the profiling attributes referenced in the profile set. For each attribute, it displays all the values allowed in the profile set.

This dialog box is used as follows:

  • Checking the checkbox corresponding to an attribute value adds this attribute value to the implicitly or explicitly selected element.

  • Unchecking the checkbox corresponding to an attribute value removes this attribute value from the selected element.

  • Other buttons:

    Profile

    Displays a menu containing the IDs of all the profiles contained in the profile set. Selecting a profile from such menu, automatically checks the checkboxes corresponding to this profile. For example, selecting profile "lite" unchecks all checkboxes except "Lite".

    Clear

    Unchecks all checkboxes.

    Reset

    Revert the dialog box to its initial state, that is, all the changes you made in the dialog box are undone.
